ALLOY STEEL Standard DimensionDescriptionDiameterLengthFinishMaterial GradeEN 14399-4 10.9 HV BoltsHex Head boltsM-27 to M-8030 mm to 1200 mmPlain / Zinc plated / HDG 6az / Teflon / PTFE / Zinc aluminum flake / Geomet10.9 / 12.9High strength friction grip boltsHex Head boltsM-27 to M-8030 mm to 1200 mmPlain / Zinc plated / HDG 6az / Teflon / PTFE / Zinc aluminum flake / Geomet10.9 / 12.9DIN 6914Hex Head boltsM-27 to M-8030 mm to 1200 mmPlain / Zinc plated / HDG 6az / Teflon / PTFE / Zinc aluminum flake / Geomet10.9 / 12.9HSFG Bolts & nutsHex Head boltsM-27 to M-8030 mm to 1200 mmPlain / Zinc plated / HDG 6az / Teflon / PTFE / Zinc aluminum flake / Geomet8.8 / 10.9 / 12.9 CARBON STEEL Standard DimensionDescriptionDiameterLengthFinishMaterial GradeISO 4014 / DIN 931Hex Head boltsM-12 to M-8030 mm to 1200 mmPlain / Zinc plated / HDG 6az8.8ISO 4017 / DIN 933Hex Head ScrewsM-12 to M-8030 mm to 1200 mmPlain / Zinc plated / HDG 6az8.8ANSI B18.2.1Hex Head bolts1.1/8" to 3"1" to 48"Plain / Zinc plated / HDG 6azASTM A 193 B-7 / L-7 / B-16BS 1768Hex Head Screws1.1/8" to 3"1" to 48"Plain / Zinc plated / HDG 6azASTM A 193 B-7 / L-7 / B-16ASTM A 307Hex Head bolts1/2" to 4"1" to 48"Plain / Zinc plated / HDG 6azA, B, C

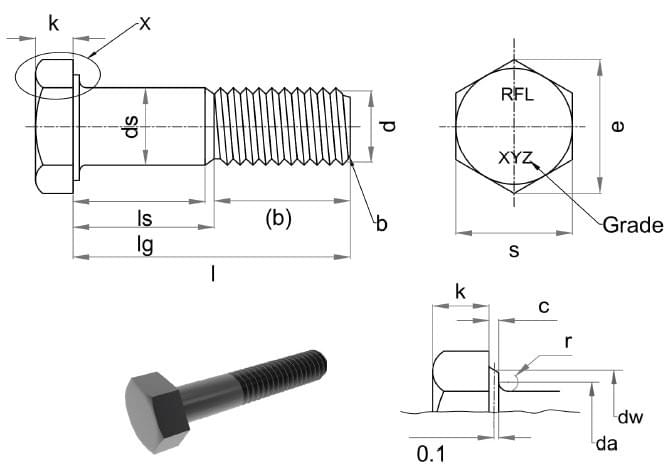

Hexagon Bolt – DIN EN 14399-4 (Bolt) Metric Series – Dimensions
- The Bolt will be according to DIN EN 14399-4 (Bolt)
- Threads will conform to Class 6g of ISO 261 & ISO 965-2
- Material High grade carbon/alloy steel & stainless steel According to ISO 898-1
- Heat Treatment: Property Class 8 or 10
- β=15° to 30°
- In Hot Dip Galvanizing Diameters will be reduced 0.3 mm
- The difference between ls and lg should not be less than 1.5P
- Incomplete thread u = ≤ 2P
- Reference datum for dw
- Maximum under head fillet
- Chamfer (b) is Double of Pitch (b = 2P)
- All dimensions are in millimetres
