Preformed Tension Clamp For ADSS Cable Application:

Tension Clamps are designed to connect ADSS cables and poles/towers. Armor rods can provide protection and cushioning to the ADSS cables. The special design of preformed rods makes ensure that Tension Clamps can’t cause undue stress to the ADSS cables, so as to ensure the normal lifetime of cables system.

ADSS Preformed Tension Clamp supplier,Strain Clamp China factory

Online Chat in the Lower Right CornerWelcome add our WhatsApp +86 150 5061 5346 for Factory visit live broadcast online

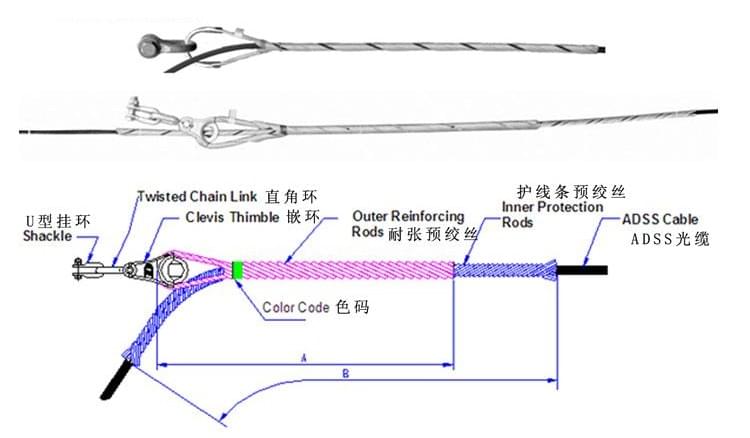

Structure and Raw Material

Shackle--Hot dip galvanized steel. Shackle is connected with Reinforcing Pole units.

Twisted Chain Link--Hot dip galvanized steel. Twisted Chain Link is intended for connecting U- Shackle and Clevis Thimble.

Thimble---Hot dip galvanized cast steel. Thimble is plugged in shackle of Tension Clamp for protection and connection.

Armor Rods----- Aluminum clad steel wire. Armor Rods increase friction with a layer of particle emery inside to cables. Rods are assembled into four subsets in workshop which reduce misalignment errors and speeds installation. The ends are bent outward to provide stress relief at the critical cable departure areas.

Preformed Dead End -- Preformed Dead End are made of hot dip galvanized steel wire or aluminum clad steel wire, it is assembled into one subset with a layer of firm emery inside in workshop, in order to increase gripping strength of Tension Clamps while decreasing side pressure.

Direction

1. It is designed to connect continue pole (tower) and Terminal pole(tower), tensile pole or line angles above 25。Pole (tower). The special specification: one unit per Terminal pole (tower), two units per tensile pole (tower), two units per continue pole (tower).

2. You can select the Specification Model corresponding to the appropriate cable diameter range, maximum allowable tension (MAT) or Span Length from Data Sheet.

Low Tensile force Tension Clamp for ADSS Cable

The tension clamp is single preformed rods structure, simple and reliable ,convenient and quick installation, It is specially designed for short span length low tensile force ADSS cables.

Technical Data

Grip Force:10KN

Recommended Span Length:≤100m

Preformed Tension Clamp Data Sheet

Specification Model

Suitable Cable Dia.(mm)

Dead end rods Length(mm)

Color Code

ANF 0900 010

8.1-9.0

725

黑Black

ANF 1000 010

9.1-10.0

750

红Red

ANF 1110 010

10.1-11.1

800

橙Orange

ANF 1220 010

11.2-12.2

850

黄Yellow

ANF 1330 010

12.3-13.3

900

绿Green

ANF 1440 010

13.4-14.4

950

青Cyan

ANF 1550 010

14.5-15.5

1000

蓝Blue

ANF 1660 010

15.6-16.6

1050

紫purple

ANF 1770 010

16.7-17.7

1100

黑Black

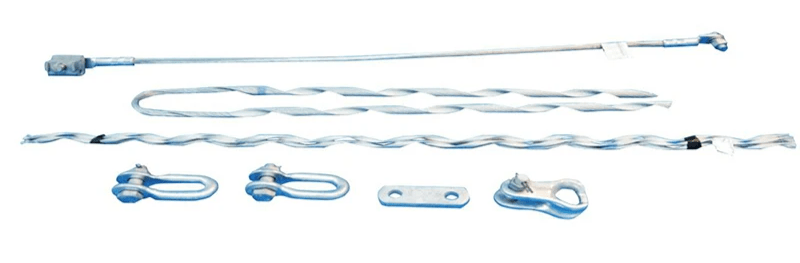

One set of Tension Clamp includes a unit of Dead end Rod, a Rope Thimble, and a unit of Shackle (U-4)

Preformed Guy Grip | Dead-End | Helical Tension Clamp,OPGW Overhead Line fittings manufacturer

Preformed Guy Grip | Dead-End | Helical Tension Clamp,OPGW Overhead Line fittings manufacture:

1. Usage and characteristics

OPGW Helical Tension Set is mainly used for installation of cable with less than 160KN RTS onto tension tower /pole,corner tower/pole,and terminal tower/pole.A complete set of OPGW Helical Tension Set includes Aluminum Alloy or Aluminum or Aluminum-Clad steel Dead-end,Structural Reinforcing Rods,Supporting fittings and Grounding wire Clamps etc.

2. Product SpecificationTypeAvailable Dia. of Cable(mm)Failing Load(KN)Min.(mm)Max.(mm)ONY-07807.27.870ONY-08807.98.870ONY-10108.910.170ONY-114010.211.480ONY-128011.512.890ONY-141012.914.1100ONY-155014.215.5110ONY-173015.617.3120ONY-192017.419.2160ONY-211019.321.1160

3. Packing /shipping/ Terms of Payment

Packaging: preformed guy grip according to the concrete product cartons,wooden cases (as customer's requirements)Delivery: usually,it will take about two weeks for the order of 10000 sets for productionTerms of Payment : By T/T

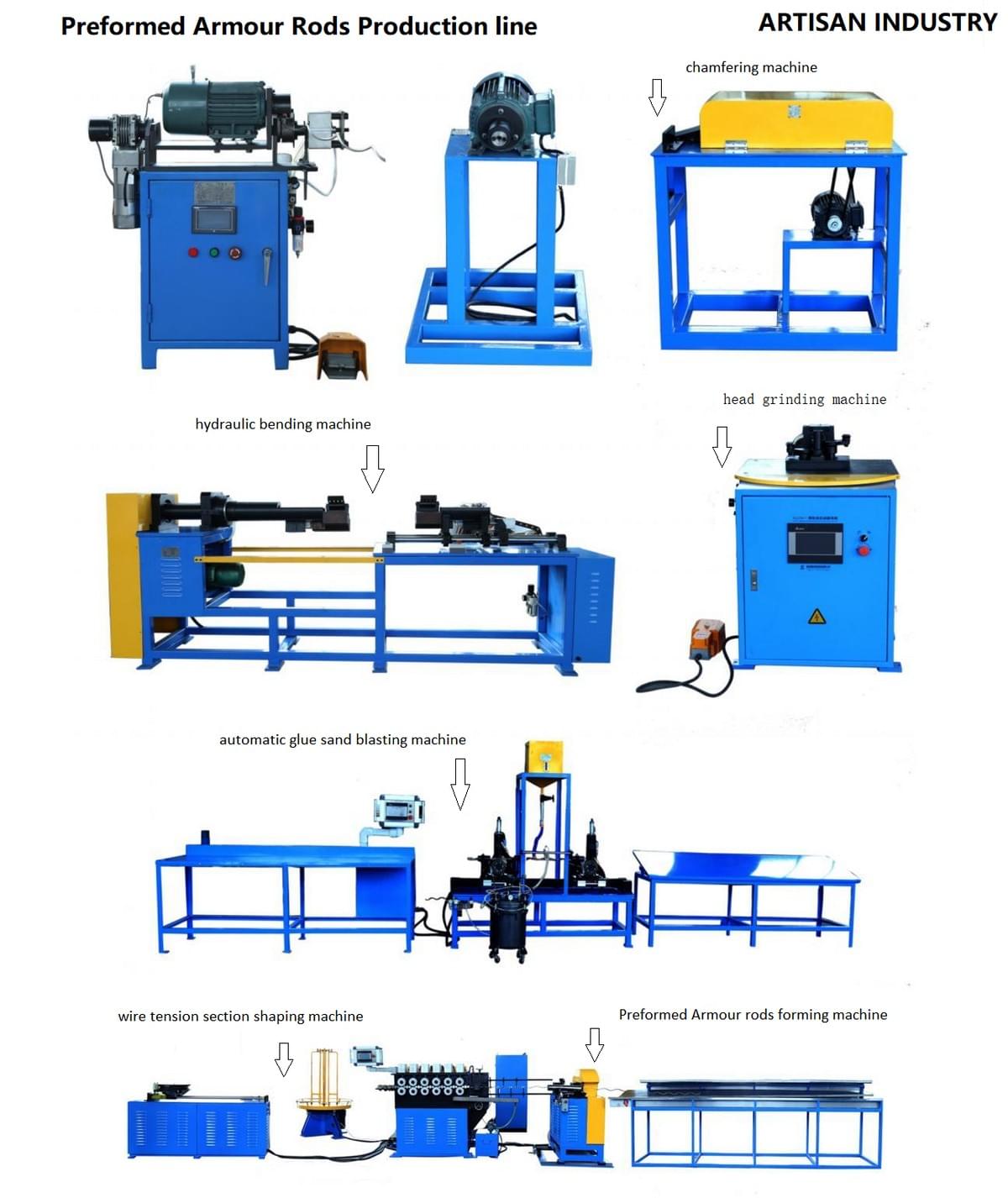

Overhead dead end strain clamps forming machines/dead end guy clamp power fittings production line
