Metal Housing for Gas-Insulated Switchgear (GIS)

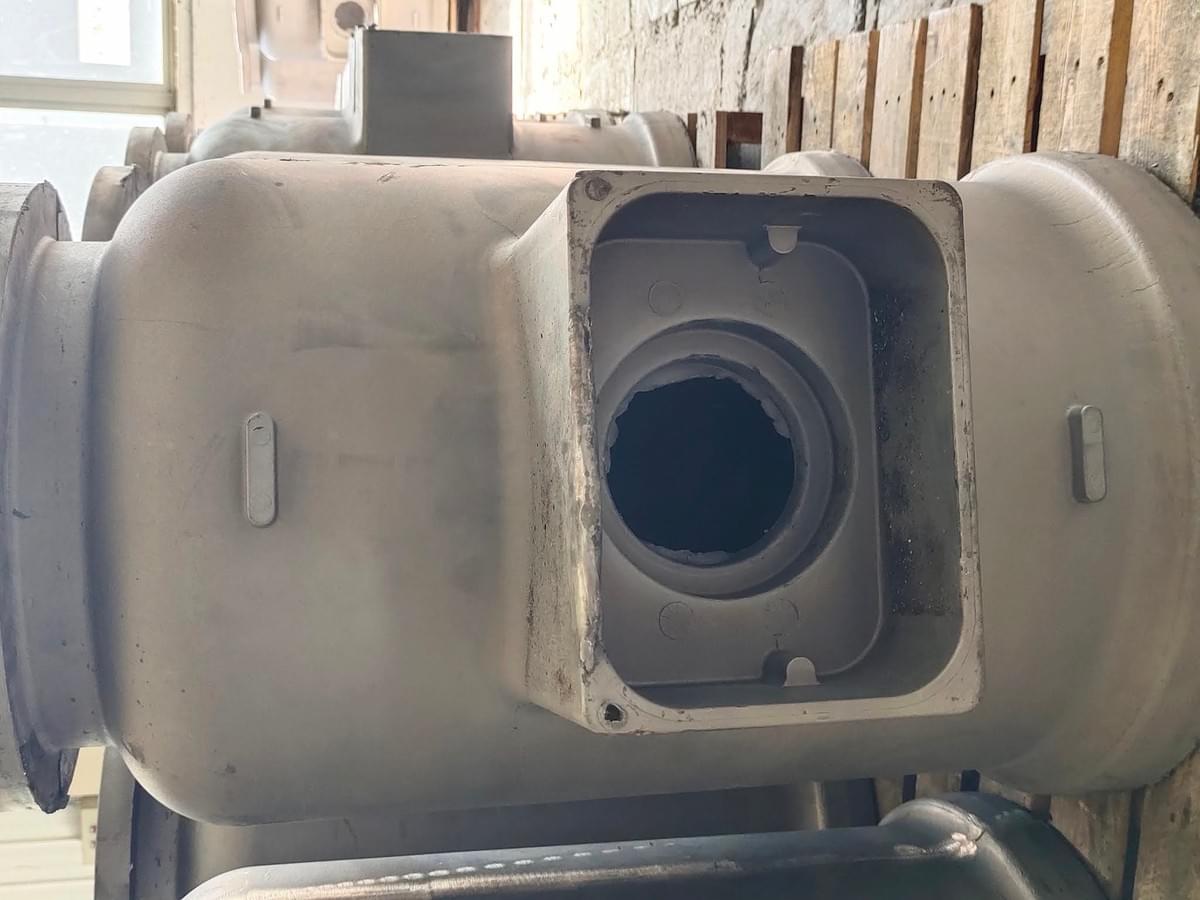

Gas-insulated switchgear (GIS) is a compact metal encapsulated switchgear consisting of components such as circuit-breakers and disconnectors, which can be safely operated in confined spaces. GIS is used where space is limited, for example, extensions, in city buildings, on roofs, on offshore platforms, industrial plants and hydropower plants. We have contracted to make a variety of housing subjected to machining(milling, drilling, etc.) for GIS and other power transmission systems.
We provide a comprehensive range of cost effective metal casting parts like GIS housing, wind turbine hub, machine bed with large size to customers around the globe. We can work with all the typical metal materials, such as carbon steel, stainless steel, aluminum alloy, etc.

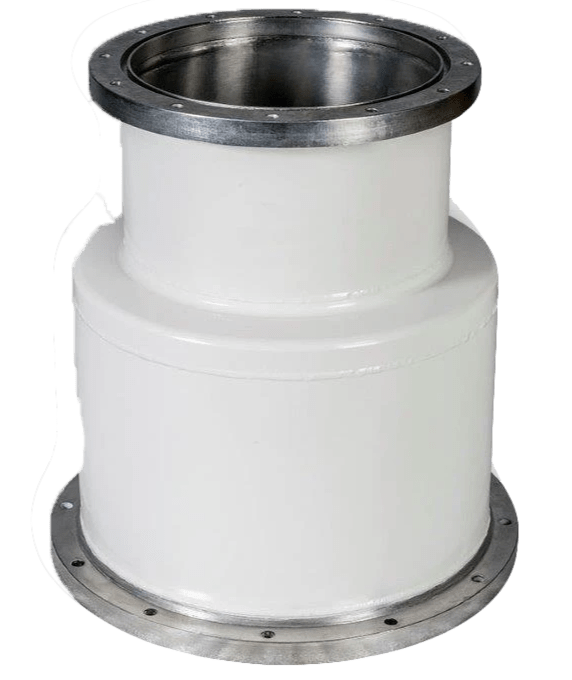

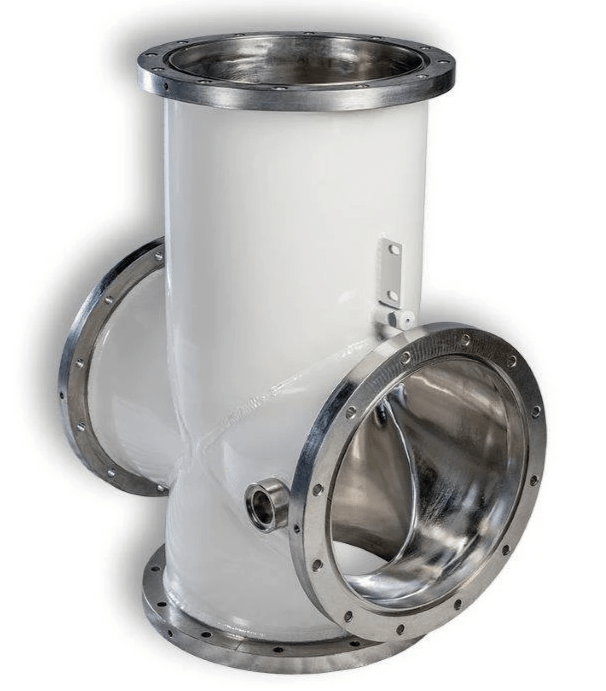

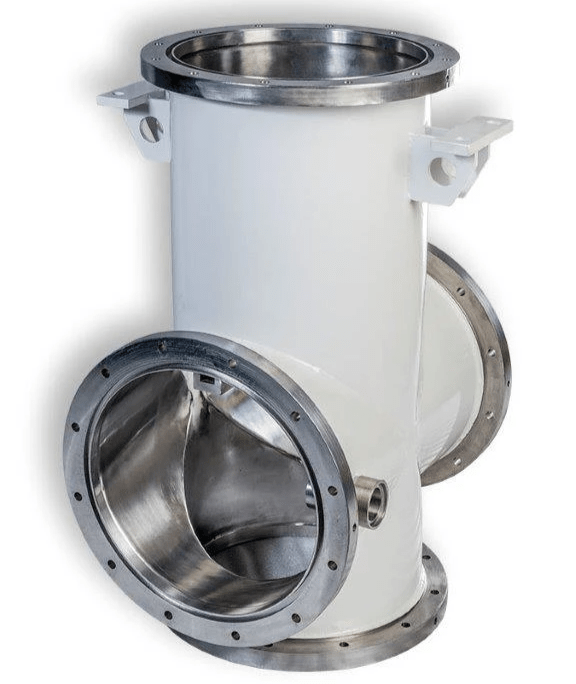

Stainless Steel Enclosures for SF6 Gas Insulated Electrical Switchgear - Overview
Used in 36kV to 145kV rating SF6 Gas Insulated Electrical Switchgear.
Three different types of Enclosures can be offered viz, Bus, Switch and for Cable Termination with or without RFT Body as per the customer requirements and other features can also be incorporated.
Supplied in Stainless Steel material SS 304 or SS 316.
Stainless Steel Enclosures are tested for Welding Quality by Dye-Penetrant Test, Ultra-sonic Test and by Radiography.
Only Qualified Welders and Qualified process are used. Stainless Steel Enclosures are precision machined on CNC Machines to obtain Geometrical and positioning accuracy.
Stainless Steel Enclosures are electro-polished to give a surface finish of Ra 0.8.
SS Enclosures are powder coated as per Customer's choice of paint.
Tested for sniffer Helium Leak Test up to 2 x 10-6 std cc/sec.
Standard Sizes of Stainless Steel Enclosures for SF6 Gas Insulated Electrical Switchgear
