ARTISAN INDUSTRY, Professional epoxy fiberglass products manufacturer,
FRP(ECR) rods/tubes applicated in power transmission and distribution line products, such as composite Suspension insulators, line post insulators,HDPE Pin Insulators, HDPE Cable Spacer, HDPE Spool Insulators, polymer Railway Insulators, Fuse Cutout, Surge Arrester, HV bushings etc.
FRP Rod FRP Epoxy Pultruded rods are being used as electrical insulation material in Off load tap changer / off load tap changer, lighting arrestors. high electrical insulation FRP Epoxy Pultruded rods/tubes for electrical insulation for various industrial applications.
Fiberglass Epoxy Pultruded rods/tubes used for electrical insulation in Electrical Transformers, Insulators, Lighting Arrestors, Drop out fuses, GOAB Switches, Heavy Motors and various other applications .
Composite Insulator Core Rods is ARTISAN INDUSTRY's key products,

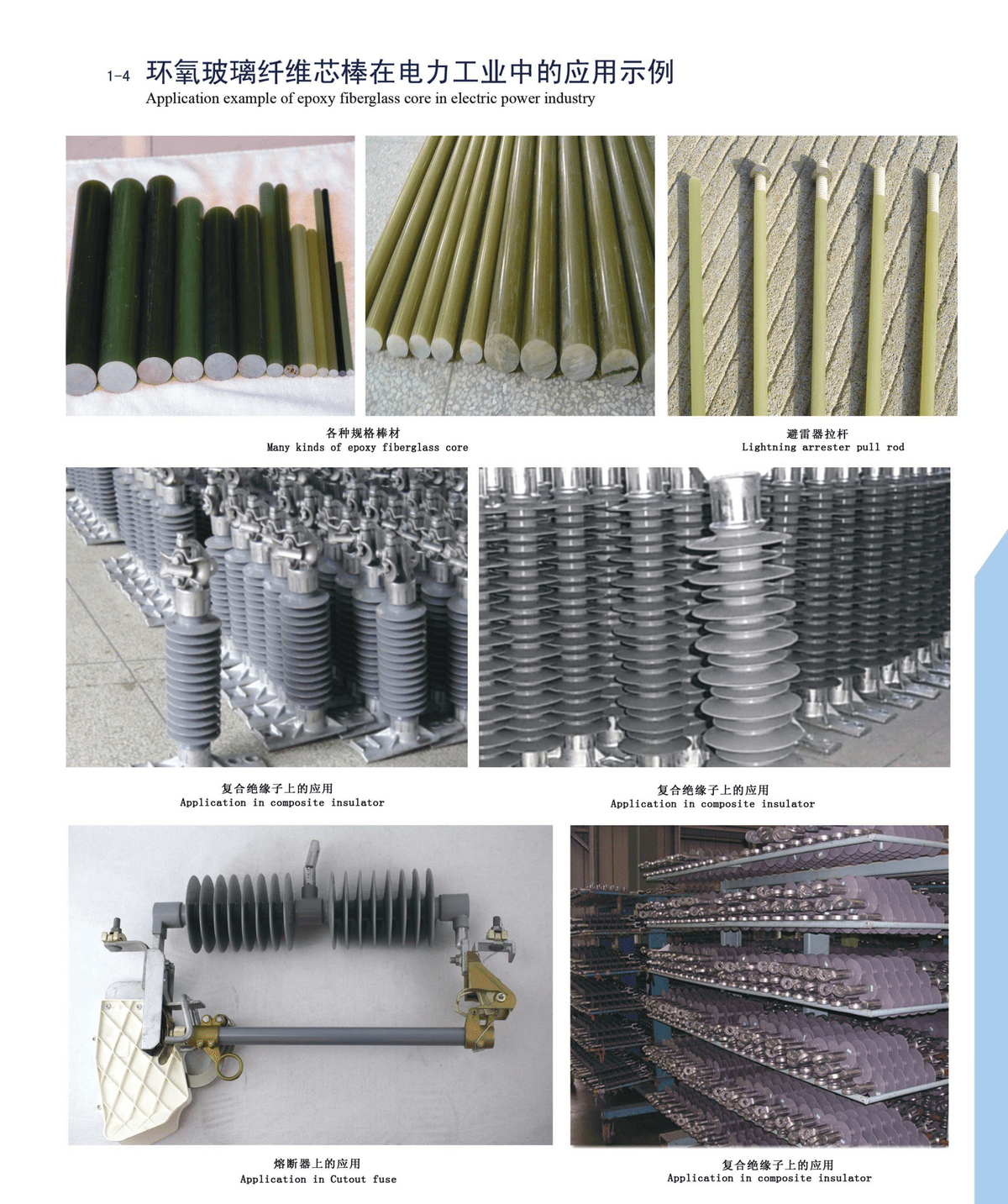

products applicated in Composite/Polymer insulator markets, Fiberglass Epoxy Pultruded Composite Insulator Core Rod suitable for application in Composite/Polymer Insulators and Lighting Arrestors.
FRP Rods, FRP Tubes Advantages:
Epoxy resins are impregnating compounds with the highest available quality of all comparable polymers for the pultrusions of FRP rod materials. Hot curing epoxy resin in combination with anhydride hardener gives an aging/hydrolysis resistant high strength matrix component. Polyester resins are not hydrolysis resistant and have lower mechanical and electrical properties.
E-glass Epoxy Rod (FRP Rod)
Main Features:

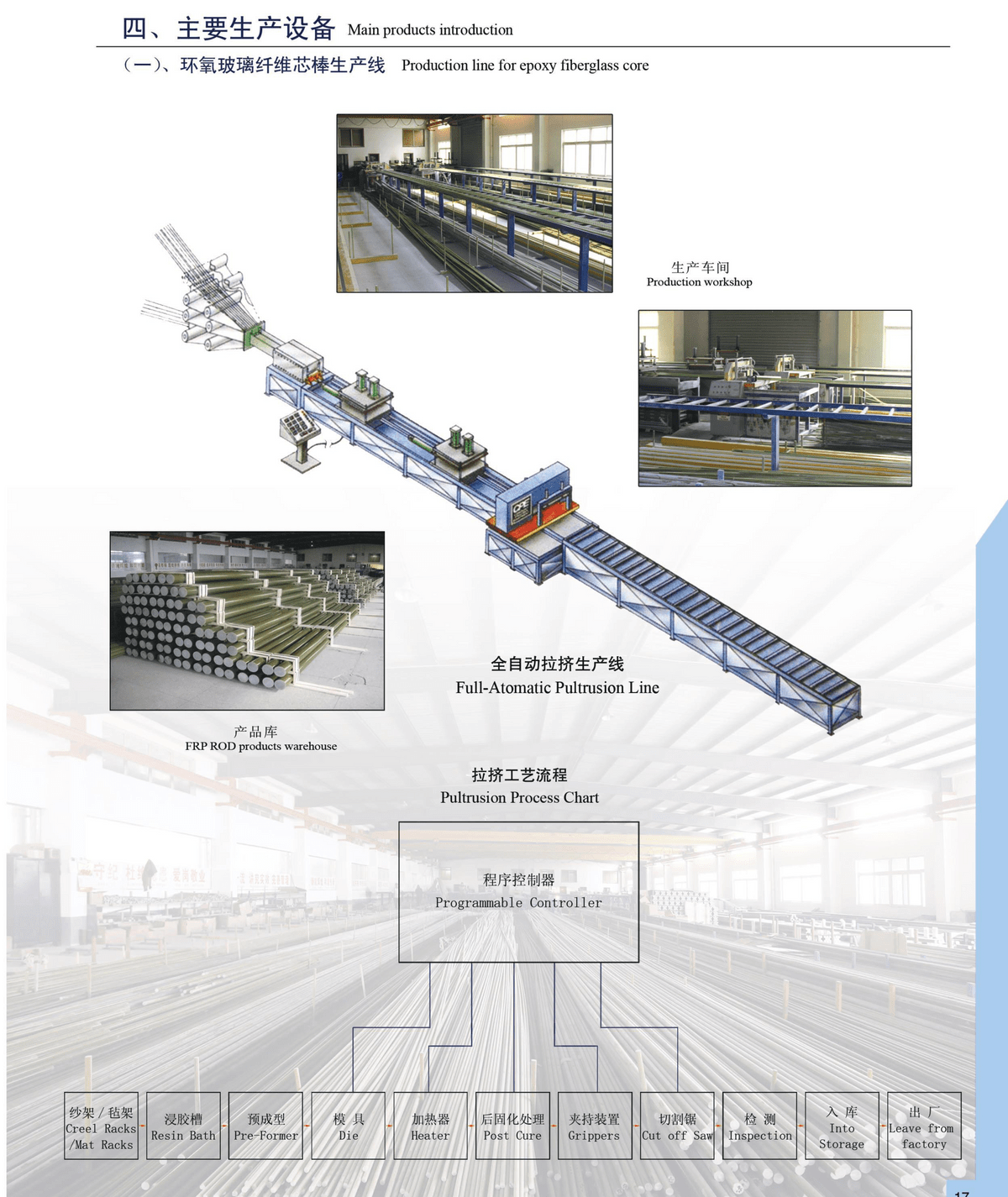

1. Pultrusion technology
2. Diameter: 6mm to 130mm; length according to requirements.
3. Superior mechanical strength, corrosion resistance and flame resistance.
4. Excellent electrical insulation performance & high temperature resistance.
5. IEC, ASTM, GB Standards.
Application reference:
Diameter 16--38mm for composite tension & suspension insulators
Diameter 22--54mm for composite pin insulators
Diameter 24--80mm for composite line post insulators
Diameter 28-130mm for composite station post insulators
Diameter 20--36mm for composite fuse cutout (insulators)
ECR-glass Epoxy Rod (ECR Rod)
Main Features:
ECR rod has all performances that FRP Rod has, but also has extra good stress-corrosion resistant performance as well as high temperature resistance.
1. Pultrusion technology
2. Diameter: 6mm to 130mm; length according to requirements.
3. Superior mechanical strength, corrosion resistance and flame resistance.
4. Excellent electrical insulation performance.
5. IEC, ASTM, GB Standards.
Application reference:
Diameter 16--38mm for composite tension & suspension insulators
Diameter 22--54mm for composite pin insulators
Diameter 24--80mm for composite line post insulators
Diameter 28-130mm for composite station post insulators
Diameter 20--36mm for composite fuse cutout (insulators)

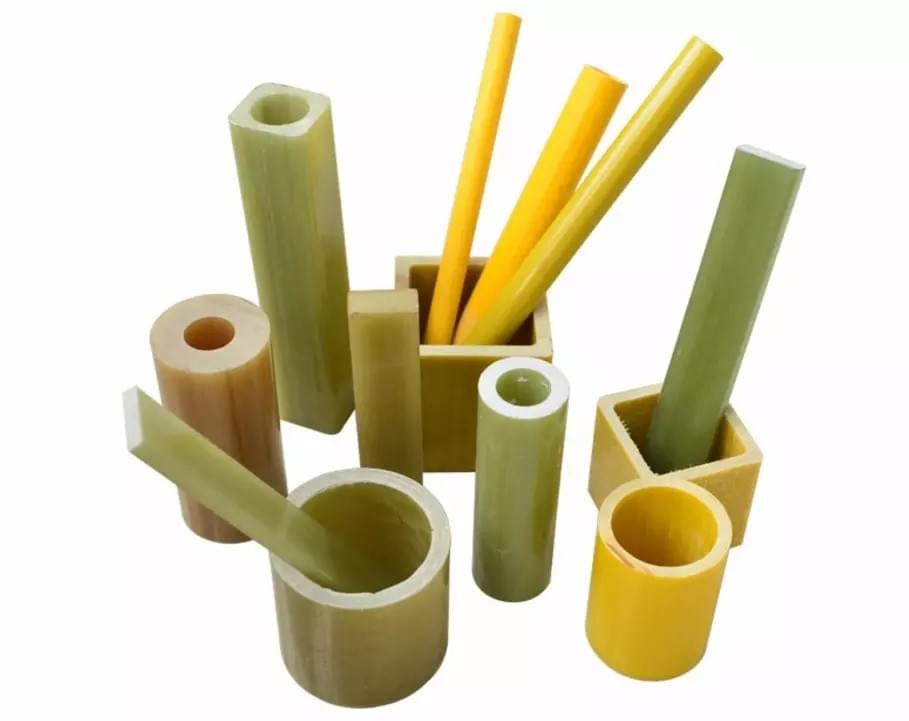

Main Features of Epoxy Pultruded Tube:
FRP products(rods/tubes) are Epoxy Resin base manufacturing fiber reinforced plastic (FRP) pultruded sections for electrical, infrastructure and other engineering applications.
1. Epoxy Pultruded Tubes are made by Pultrusion technology.
2. Excellent electrical insulation performances.
3. Superior mechanical strength and good corrosion resistance.
Range of Epoxy Pultruded Tube
Inner Diameter (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Outer Diameter (mm) |
4 | 2 | 5 | 2 |
6 | 2 | 6.5 | 3 |
7 | 3 | 7.5 | 4 |
8 | 4 | 8.5 | 4 |
9 | 5 | 9.5 | 5 |
10 | 6 | 11 | 7 |
12 | 8 | 12.7 | 8 |
14 | 10 | 15 | 10.5 |
16 | 12 | 18 | 13 |
19 | 14.5 | 20 | 15 |
22 | 16 | 24 | 18 |
25 | 20 | 25.4 | 20 |
26 | 20 | 28 | 24 |
30 | 25 | 32 | 27 |
35 | 30 | 38 | 30 |
40 | 30 | 50.8 | 40 |
76 | 60 | 100 | 90 |
12.5 | 18 | 20 | 60 |
12.5 | 20 | 20 | 60 |
12.5 | 24 | 20 | 70 |
12.5 | 28 | 32 | 50 |
20 | 30 | 32 | 60 |
20 | 35 | 32 | 70 |
20 | 40 | 30 | 70 |
3 | 18 | 15 | 60 |
6 | 18 | 70 | 80 |
18 | 30 | 60 | 90 |
15 | 60 | 20 | 100 |
Custom size is available upon request.
Technical Specifications of Epoxy Pultruded Tube
No. | Description | Unit | Value |
1 | Density (20±2℃) | g/cm3 | ≥2.0 |
2 | Thermal Deflection Temperature | ℃ | 180/200/240 |
3 | Impulse Strength | kV/m2 | 90 |
4 | Bending Strength | N/mm2 | 390 |
5 | Water Absorption | % | ≤0.05 |
6 | Electrical Strength (in 90℃ transformer oil) | MV/m | 10 |
7 | Flammability | Class | FV0 |
8 | Temperature Index | ℃ | 155/180/220 |
