GIS/ Transformers Corona Rings

Aluminum / Copper Corona rings used for power transformers, high voltage insulator, high voltage bushing, Surge lighting arrestor, reactors, HV DC system, high voltage test lab... and so on.
The corona ring surface are smooth, with excellent performance on controlling the HV corona.

Aluminum casting products/metaloxide surge arresters potentialring/grading rings for system voltages from 1 kV up to 800 kV,

Material Ductile iron casting part: QT400 , QT450, QT500, QT550, QT600, QT700

Zinc & Zinc alloy. ZA-3,ZA-5,ZA-8

Sand casting:ZL101,ZL104,ZL102 and so on.

Iron casting: HT150, HT200, HT250, HT300,etc. Surface Powder coating or painting with various colors Standard ASTM, DIN,JIS, EN, ISO, GB Surface Treatment Sand blasting;Zinc/chrome plating;Electrophoresis; Powder coating;Polishing Brand OEM / ODM Processing 1. Process: Die Casting,sand casting,gravity casting,lost wax casting, 2.Precision Machining: CNC turning, milling, drilling, grinding, assembly . Usage Agricultural Machinery Parts

Electrical Fittings Composite Insulator High Voltage Corona Ring

aluminum alloy grading rings/Corona ring: For AC/DC polymer composite insulators, it can be high voltage evenly distributed around the object to ensure the potential of every position around the ring consistent. The purpose of the ring is very extensive, it can be divided into; Arrester corona ring, lightning protection; Corona ring, insulator corona ring, transformer corona ring, corona ring of high voltage test equipment, power transmission line corona ring. Meanwhile, in a lot of supporting precision measurement of electrical equipment, often used shielding corona ring, or shield ring.


Oil-immersed Power Transformer 35~500kV 6.3~300MVA Mobile Transformer directly connected to GIS , self-cooling, lightweight designed with aluminum tank Furnace Transformer (up to 110kV, up to 70MVA) Rectifier Transformer (up to 35kV) SF6 GAS INSULATED SWITCHGEAR 72.5-550kV HYBRID GIS INSULATED SWITCHGEAR LW28 (A) TYPE 72.5-550 SF6 DEAD TANK CIRCUIT BREAKER Live Tank SF6 Circuit breakers LW36 (40.5 kV) Center- breaker disconnectors GW4(up to 550kV) LVB(T) series oil-immersed current transformer(Live tank)

Transmission and Distribution Overhead Lines and Substations corona Discharge fittings

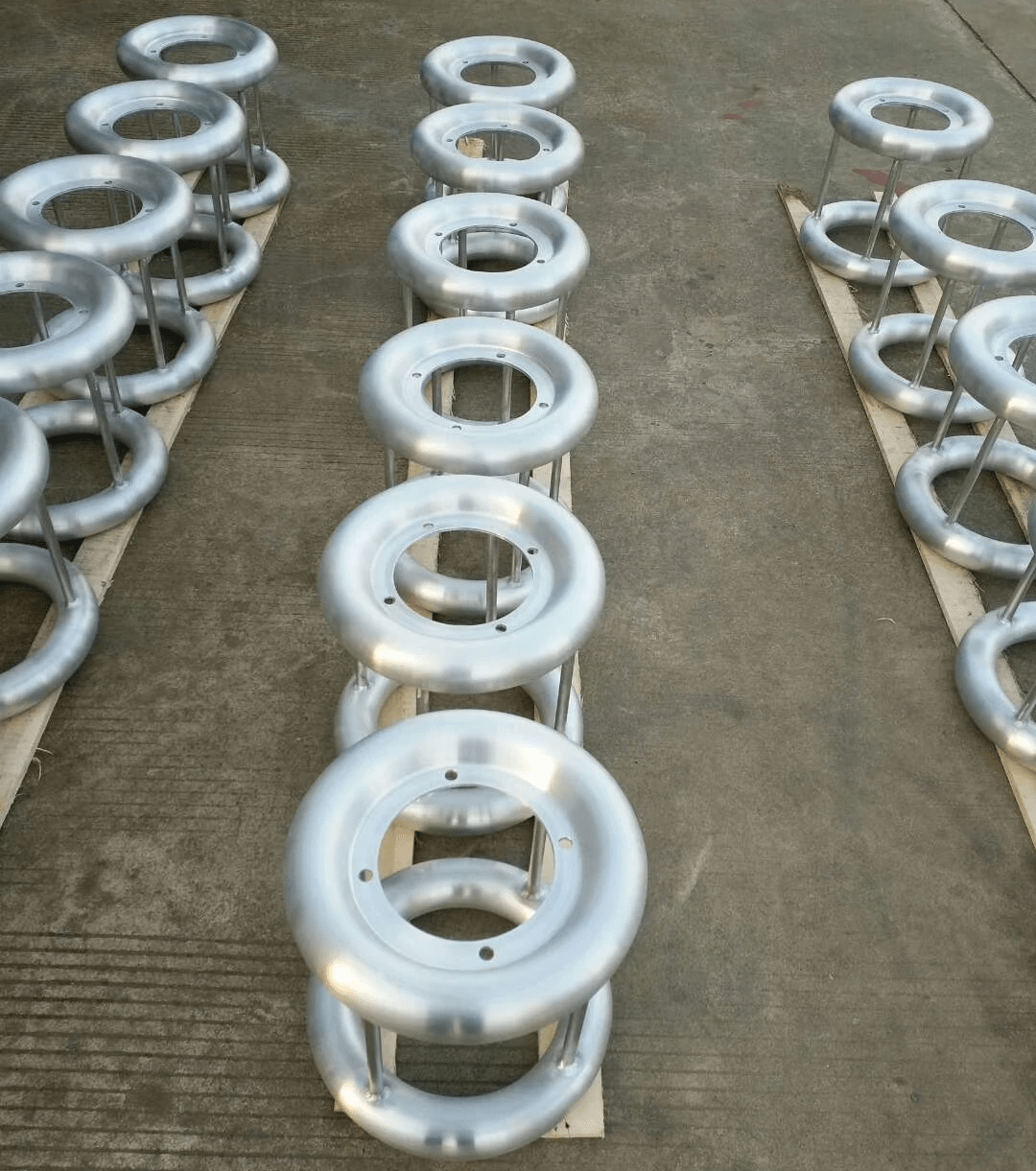

grading ring in surge arrester/grading ring in insulator for HV testing

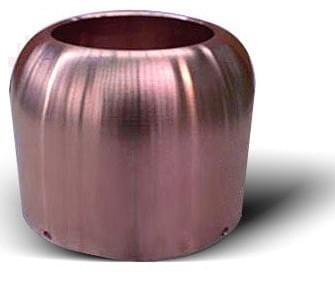

copper corona rings in GIS
High Voltage Corona Control
HV testing equipments Corona Ring

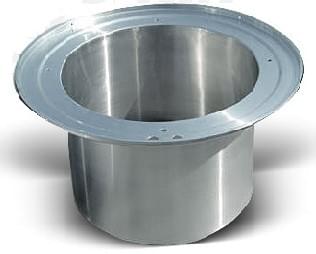

aluminum Shielding Tube corona rings
aluminum alloy Grading Rings Shielding Tube

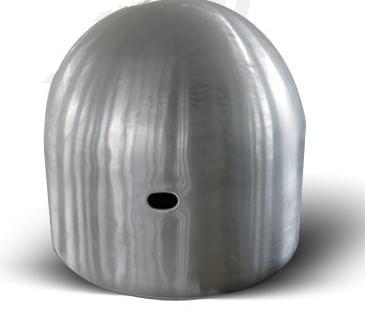

Corona Cover Grading Rings
aluminum corona Conductor
Corona Rings for Power Transformer
Corona Rings for Current Transformer
Corona Rings for Gas Insulated Switchgear
