What is “Progressive die metal stamping”?

Aluminum Stampings/Automotive Stampings/Metal Stampings,Fourslide and Multislide Stampings, Stainless Steel Stampings,Long Run, High Speed Stamping,Progressive Die Stampings manufacturer

What is “Progressive die metal stamping”?

Progressive die metal stamping's advantage?

What is “Progressive die metal stamping”?

Progressive die metal stamping's advantage?

As the industrial age progressed a need for volumes of consistent, interchangeable, metal parts emerged. Metal stamping was born to fulfill this need. Progressive Die metal stamping was a significant improvement allowing machines to operate on a continuous cycle and producing a part with every stroke of the punch press machine without interruption. Progressive Die stamping is traced back to about 1900 and grew to become a widely practiced manufacturing technique in the 1950’s. Thousands, or millions, or exactly the same part could be manufactured quickly and efficiently.

While there have been many refinements to this art, the basic concepts that existed over a hundred years ago still prevail. Here are the basics.

A progressive die is a tool which fabricates metal again and again into a consistent manner. A progressive die has multiple stations, or places where work is performed and the finished part is created in steps as it progresses through the die.

We start with a strip of steel, or aluminum, copper, most any metal. The material is fed into the punch press, and through the progressive die, in exact increments, or progressions. Every stroke of the press feeds the same length of material.

The progressive die is placed into a punch press machine, a machine that has a ram which travels up and down in a very precise and controlled manner. There are many sizes and styles of punch presses which are often rated by how much force they can excerpt.

As the material “progresses” through the die different actions can be performed. We can punch holes through the material. Those holes can be round, or complex. We can bend parts of the metal at different angles. We can squish the material, or coin it, to make it thinner. We can draw the material, stretching it to change elevations along a plane. Progressive dies can also make multiple parts at the same time, thus yielding more than one part per stroke of the punch press. Progressive die designers are really only limited by their creativity, using the physical properties of the material to produce parts from the seemingly simple, to the very complex.

This part is made on a progressive die. Note how the strip changes as it “progresses” along the stations. You can see how the metal is manipulated into the final part.

Here is another example. This example shows complex holes as forms in this 11 inch diameter ring. Notice how the material is drawn up giving this part two intricate working planes. Exacting tolerances, holding dimensions to sometimes a few thousandths of an inch can be maintained using progressive die metal stamping.

Parts from the very small, like electrical components where a thousand pieces fit into the palm of your hand, to body panels for automobiles are made using progressive die metal stamping.

The speed at which progressive dies smash out parts can be lightning fast, to slow and deliberate, with each part being an exact duplicate of the part before.

Progressive die metal stamping is a very economical and time efficient method for producing large quantities of identical parts.

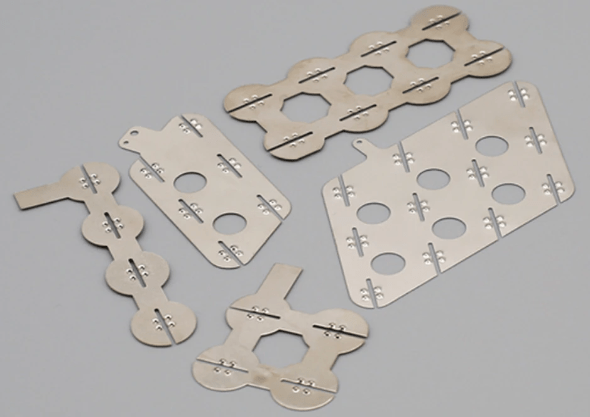

stainless Metal Stamping oem Services China factory/ silver plating
Metal Stamping Parts price fob Shanghai,stainless surface  silver plating/copper metal sheet
AISI316L stainless Progressive Die Metal Stamping components manufacturer

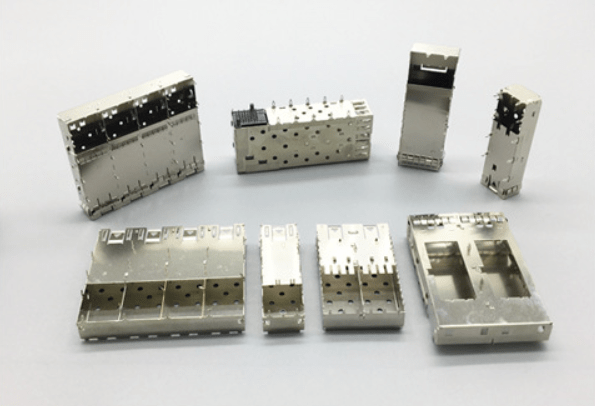

precision Progressive Die Metal Stamping components manufactory China

Stamped Parts Fabrication & Assembly Service (shows from the following pictures)
PUNCHING / PIERCING
Shearing, Breaking, Forming, Lancing, Notching, Blanking, Coining, Swaging
BENDING
Tubes, Bars, and Custom Shapes
DRILLING
Small Bore – Large Bore – Deep Hole
PRECISION CUTTING AND MITERING
WELDING
MIG and TIG
ASSEMBLY
Riveting, Pin Inserting
COMPLETE CNC AND CONVENTIONAL MACHINING

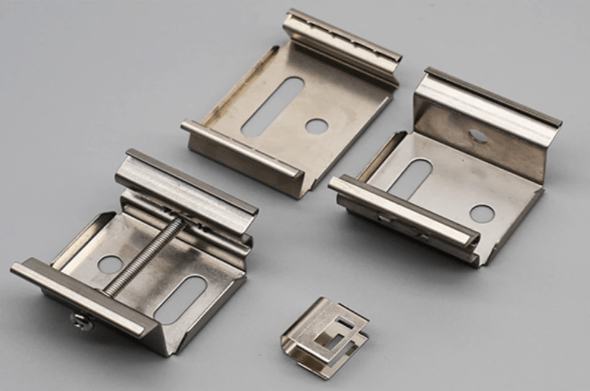

stainless Stampings accessories production plant /Assembly Services China supplier

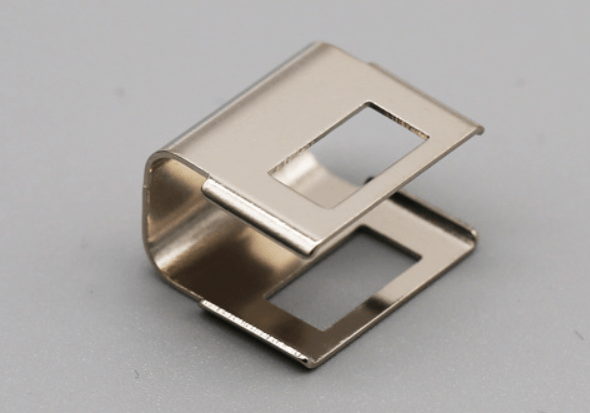

high precision tolerance dimension metal stamped parts manufactory in China,silver plating surface treatment

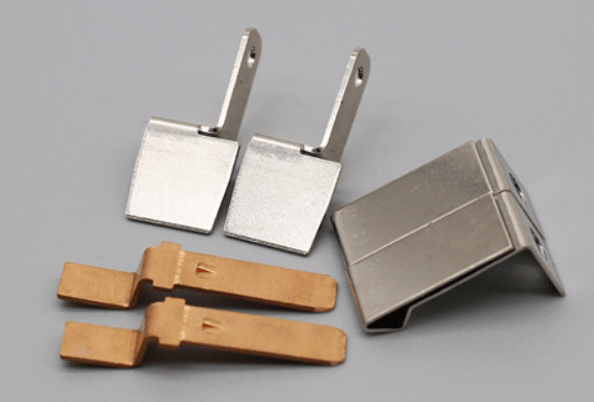

Aluminum Stampings/Automotive Stampings/Metal Stampings/Fourslide and Multislide Stampings factory

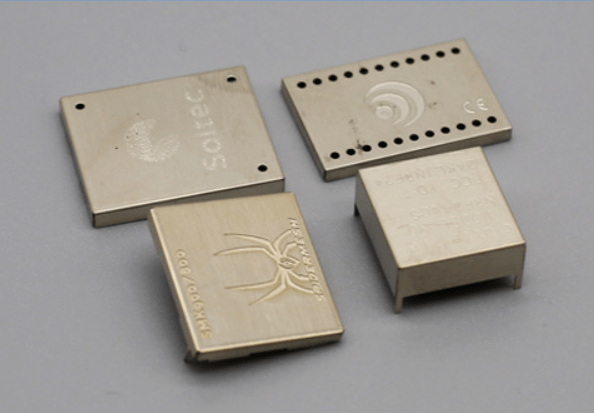

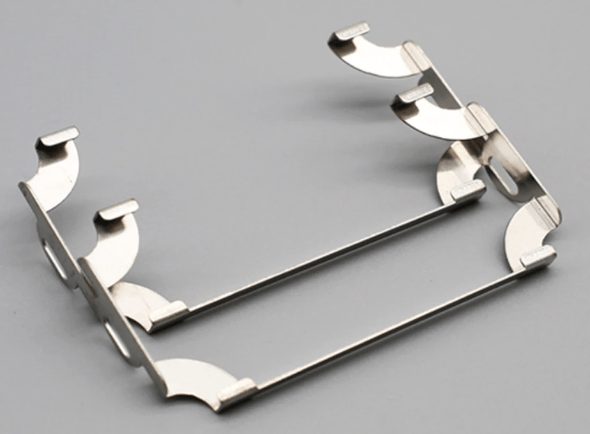

HIGH SPEED METAL progressive die STAMPING factory in China,cheap price good quality

HIGH SPEED METAL STAMPING PROCESS:
Assembly: Capabilities range from simple mechanical attachment to complex electronic and electro-mechanical integration of products. Dedicated, flexible work cells are provided to incorporate assembly, inspection, test, and final packaging.

Auxiliary Operations: Operations outside the main stamping or extruding or tube forming process such as punching, drilling, embossing, notchinging, cutoff and cut-to-length.

CNC Turning and Machining: Turning and grinding equipment provides pins, shafts, and bar stock for a wide range of applications.

Fabrication: A manufacturing solution that utilizes CNC punching and forming capabilities. Typically used in low to medium volume production, this soft tool method allows us to get your product into production quickly, with minimal tooling investment. It also affords consistent part quality and flexibility with design changes.

Metal Finishing: Metal finish textures are offered through the use of automated and manual equipment, which includes grinding, timesaving (grain finishing), media tumbling (deburring), and sandblasting.

Plating: rack and barrel zinc electroplating processes with clear, yellow, black, and blue-bright chromates.

Prototype: A product model constructed for testing and evaluation to see how the product performs before releasing it to the manufacture. This low volume pre-production sample is typically used to test form, fit, function, and manufacturability of the part.

Stamping: This process uses conventional or progressive-type hard tools (dies) in punch presses to blank and form sheet metal products. Stamping accommodates higher volume, lower unit cost, and larger tooling investment for products with longer product life cycles.

Thickness: The gauge or depth of a material.

Tolerance: The permissible variation from a specification for any characteristic of the product.

Tolerance Types: In metal stamping process four types of tolerances are routinely measured including dimensional, cross-sectional, length, angular, and material straightness.

Tool Longevity: The time a tool lasts before it must be replaced since it can no longer hold the required tolerances. Long-lasting tools are made from high-carbon, high-chrome hardened tool steel.

Tooling: Our in-house tool design and build capability accommodates a full range of requirements, from punch press dies to CNC forming, welding, inspection, and assembly tooling / fixtures. Customer volume, lead-time, and budget dictate the most appropriate tooling technique employed.

Welding: Mig, Tig, Spot, and Projection welding capability is used to join product components in all volume ranges and sizes.
