CF8M Stainless steel casting pump housing manufacturer,die casting pump body,SUS304 316 spare parts supplier

Investment Casting Diesel Engine Turbocharger Parts Turbo Housing, Custom Metal Foundry,SUS304 SS316LPrecision Silica Sol Casting, Stainless Steel Investment Casting, Stainless steel casting manufacturer, custom stainless steel die casting factory,SUS precision cast machining,stainless steel foundry CNC, lost wax and Investment casting plant

Material: Stainless Steel AISI 316 / CF8M

Casting Manufacturing: Investment Casting + CNC Machining

Application: Pump Body/Housing

Weight: 0~50 kg

Heat Treatment: Annealing + Solution

Stainless steel AISI 316 / CF8M casting pump body in China casting foundry with custom CNC machining services based on your requirements and drawings.

CF8M is defined in ASMT A351, ASMT A743 and ASTM A744, which is for casting purpose only. SS 316 is defined in ASTM A240 and ASTM A276, it’s for plate, sheet, strip or stainless steel bars. Another grade is named as F316, which is from ASTM A182 for forged parts only. TP316 will be found in ATSTM A376 for pipe only. The main applications of CF8M cast stainless steel cover: impellors, propellers, pump casings, valve bodies and press plates.

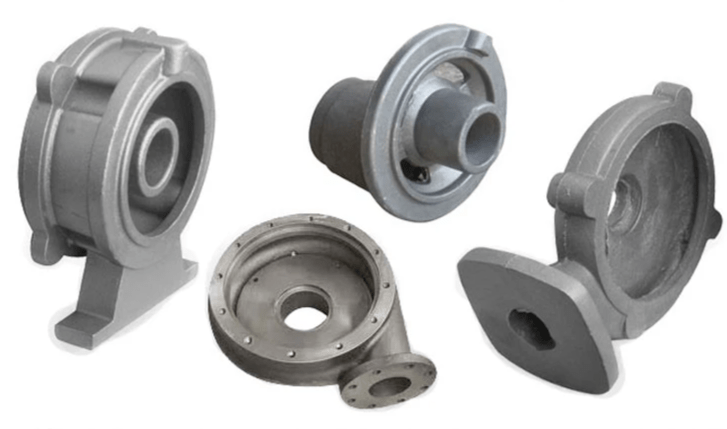

Pump Body Stainless Steel Casting Manufacturer,Customized Investment cast and silica sol casting supplier

General Products/Application/Service Area:

Metal Parts Solution for Vehicle, Agriculture machine, Construction Machine, transportation equipment, Valve and Pump system, Agriculture machine metal Parts, engine bracket, truck chassis bracket, gear box , gear housing , gear cover, shaft, spline shaft , pulley, flange, connection pipe, pipe, hydraulic valve , valve housing ,Fitting , flange, wheel, fly wheel, oil pump housing, starter housing, coolant pump housing, transmission shaft , transmission gear, sprocket, chains etc.

Main Blank Process for Stainless Steel Casting:

Investment casting (wax mold made by middle temperature wax) /Precision casting ;Lost Wax Casting (wax mold made by low temperature wax)/ Precision casting;

Product Name: Volute pump case cast | Precision Stainless Pump Casting

Material: Stainless Steel, carbon Steel,Aluminum Alloy, Brass or as your demand

Casting Process: Silica Sol Casting,Resin Sand Casting and Clay Sand Casting or Lost Wax Investment Casting

Standard: ASTM, AISI, DIN, BS and JIS etc.

Max Casting Size: 1200mm

Casting Weight: 0.2~1000Kg

Dimension Tolerance: CT5

 Productivity: 110000 tons per year

Artisan Industry's advantage: 1, The ability to casting all grades of steel, and meet IEC,ASTM,AISI,DIN,BS,JIS standard and so on. 2, The parts produced without hole or crack or any other defect. 3, Advanced inspection equipments, e.g. Direct-Reading Spectrometer, Mechanical Properties Tester, Hardness Tester , Metallographic Microscope, Nondestructive Tester , CMM etc. 4, Attractive foundry price, source factory 5, Big capacity: 110000Ton/year

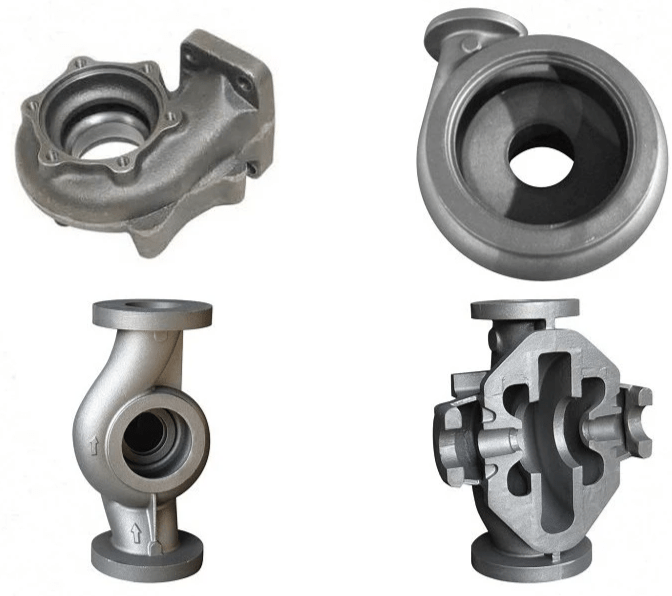

Investment Casting Diesel Engine Turbocharger Parts Turbo Housing,stainless silica sol casting parts
pump casting manufacturer,Custom Metal Foundry Precision Stainless Steel Investment Casting
manufacturer Customized Precision Casting Parts Stainless Steel Casting Parts Turbine Bearing Housing for Auto Accessories
stainless Casting,Aluminium Casting,Aluminum Alloy Die Mechanical Part Vacuum Casting factory

Item Name: Custom Metal Foundry Precision Stainless Steel Investment Casting

Blanks Tolerance -Casting Tolerance: CT7-8 for Lost wax Casting Process CT4-6 for Investment casting Process

Applicable Material for investment casting: Carbon steel, Low Carbon steel, middle carbon steel, G35, G45, WCB, WCA, WCC, ISO 340-550, Alloy Carbon steel: G25CrMo4, Heat Resistant Steel, Stainless Steel: CF8, CF8M, . G-X6CrNiMo1810, G-X7CrNiNb1189, SUS 304, 304L, 316, 316L.

Casting Blank Size:2 mm-600mm / 0.08inch-24inch according to customer requirement

Casting Blank Weight: Range from 0.01kg-85kg

Applicable Machining Process: CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/Reaming /Grinding/Honing and etc.

Machining Tolerance: From 0.005mm-0.01mm-0.1mm

Machined Surface Quality: Ra 0.8-Ra3.2 according to customer requirement

Applicable Heat Treatment: Normalization , annealing, quenching and tempering, Case Hardening, Nitriding, Carbon Nitriding, Induction Quenching etc.

Applicable Finish: Surface Treatment: Shot/sand blast, polishing, Surface passivation, Primer Painting , Powder coating, ED- Coating, Chromate Plating, zinc-plate, Dacromat coating, Finish Painting, etc.

MOQ for batch order: For casting: 100pcs For Machining: 50pcs

Lead Time: 45 days for stainless steel investment casting

pump body casting manufacturer,investment lost wax precision cast factory
