Artisan industry trading (Nantong) CO.,LTD. is one of very few professional Company that engaged in Preformed Armor rods Manufacturing Production Line、Preformed tension clamp/armor rods Machines、Preformed ADSS & OPGW Cable Accessories manufacturing equipments supplier.
our customers purchase our machines to produce Preformed Products for Transmission & Distribution and Electrified Railway Fittings.
High efficiency machines and Production lines help our customers win more and more tenders in their country electric power industry，Strong productivity ensures the quality and delivery time of their products.
Main customers worldwide：AFL、PLP、SICAME. your can find our production lines in their manufacturing workshop.

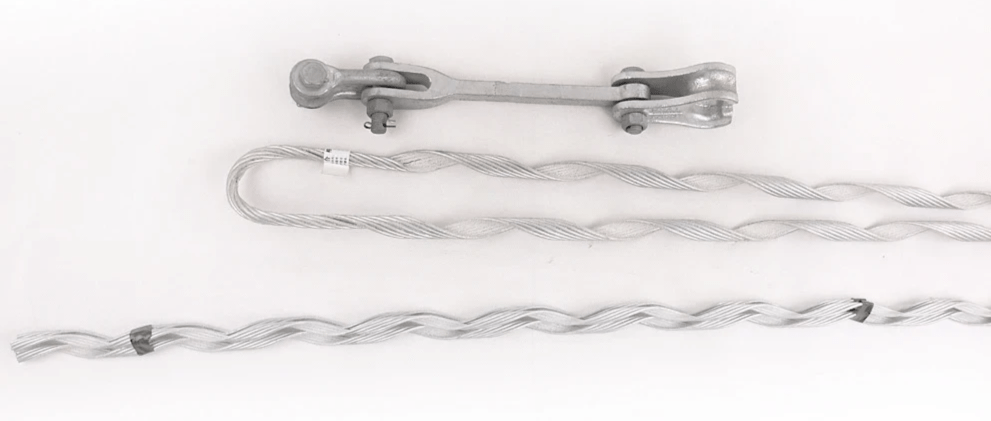

Tension clamp is designed to grip the conductor and strand uniformly to prevent distortion of the conductor. The products are designed to be used on bare conductor and strand and it is recommended to use with plastic jacketed conductor. Meanwhile, Tension clamp holdsthe minimum of 95% of the rated breaking strength of the conductor and strand and are made of high strength materials.

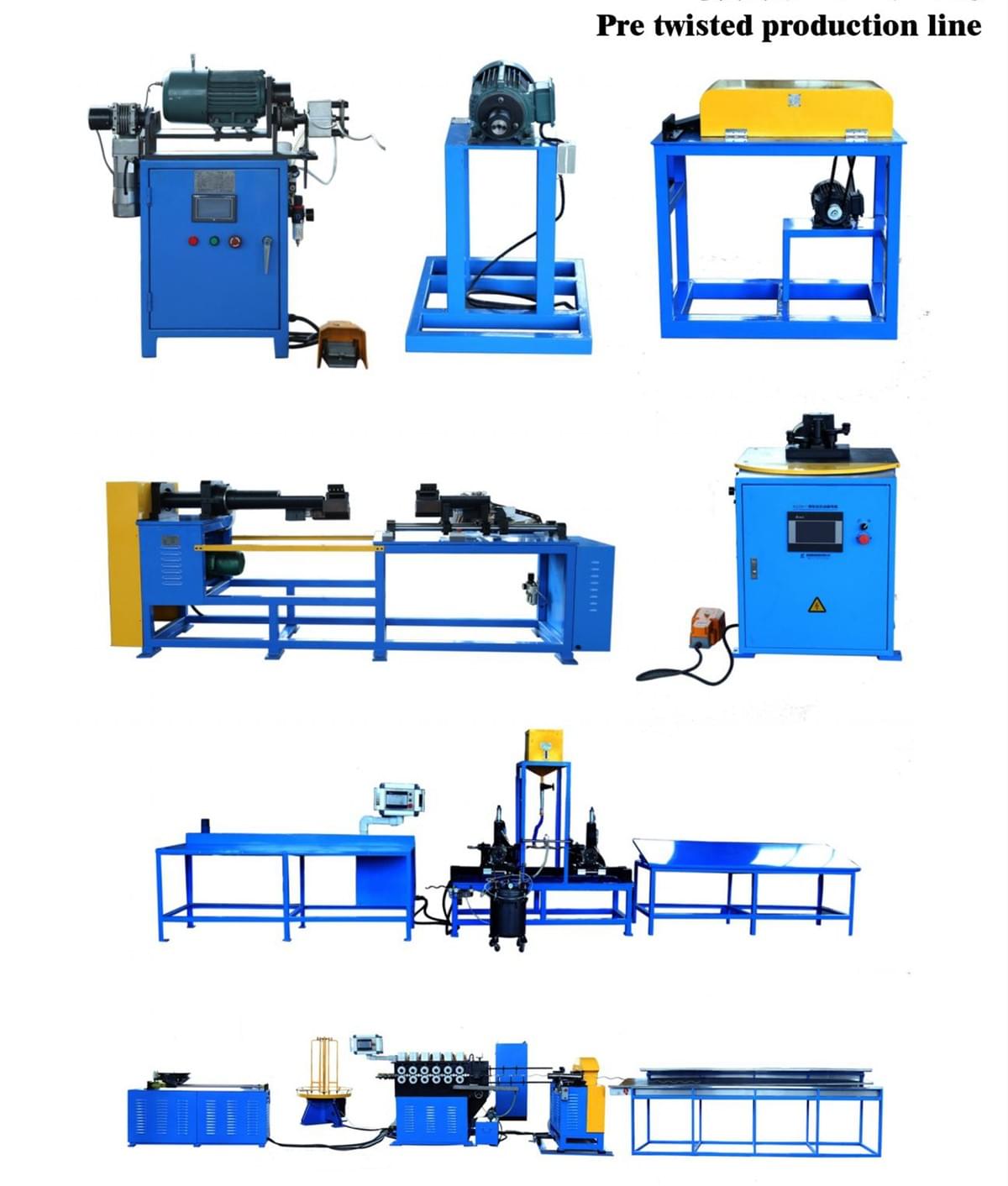

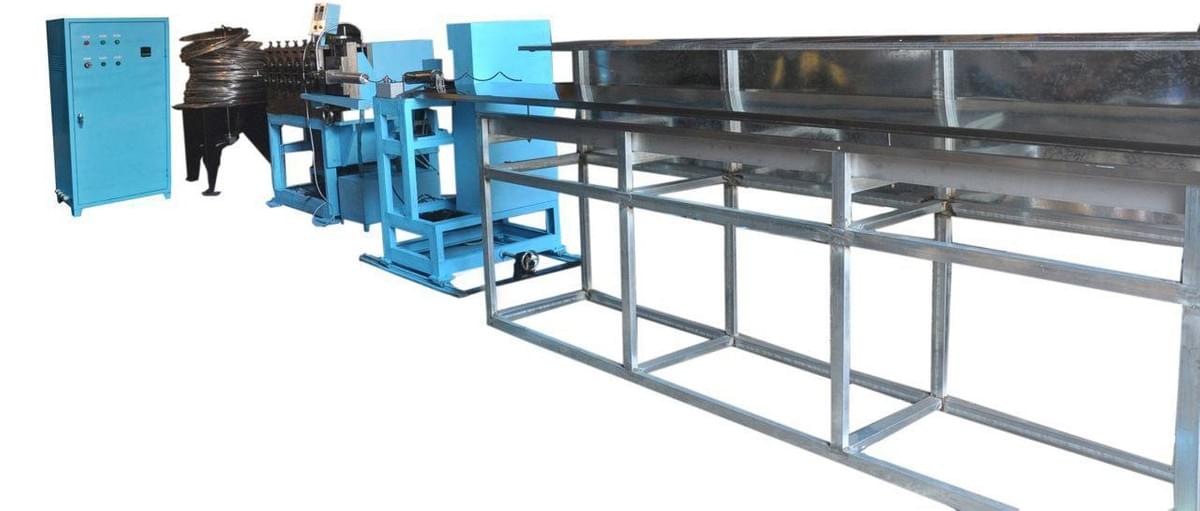

Transmission Line Preformed Armor Rod manufacturing Production line，
equipments including：
1. Preformed armor rods forming machine
2. Wire tension section shaping machine
3. Automatic glue sand blasting machine
4. Hydraulic bending machine
5. preformed dead end grip production equipment
6. helical tension clamp production equipment
7. spiral clamp production equipment
8. Preformed dead end guy grip
and other transmission line hardware fittings, power transmission and distribution line hardware, ADSS and OPGW fittings manufacturing equipments supplying.
1. Preformed armor rods forming machine
Professional Preformed Armor Rods Forming Machine manufacturer: Suitable for processing the preformed strain clamp, preformed suspension clamp, and the preformed protection fittings.
1.The machine is processed for preformed helical fitting products, the material is include Zinc-coated wire, Aluminum-clad steel wire, Aluminum-alloy wire and Coppered steel wire. Suitable for processing the preformed strain clamp, preformed suspension clamp, and the preformed protection fittings (material:the aluminum-clad steel wire or galvanized steel wire)
2.Speed shaping: 0-1.5m/s. Wire diameter of shaping: 1.67-5.2mm(Aluminum-clad steel wire ,Zinc-coated wire),1.78-9.27mm(Aluminum-alloy wire).One group of product length tolerance range:±2mm
3.Precision of preformed armor rods: ±2, reaching DL/T 763-2001 standards.
4.The wire of feed system includes 3 types: Aluminum-clad steel wire ,Zinc-coated wire and Aluminum-alloy wire. The specification and size of wire rolls as per customer’s request , if has no, in line with our common design.
5.The product line is advanced electromechanical integration system. With high automate, the whole equipment divide into 4 parts: wire feeding unit ,integrated by PLC centralized control; tightening device : shaping machine ; cutting machine. Touch panel human computer interface , easy operation ,stabilized ,low reject rate. The equipment reaches the world-class and China’s highest level.
2. Wire tension section shaping machine
Wire tension section shaping machine 1.The machine processes twisting for wire tension section of preformed armor rods and strain clamp. 2.Speed of twisting: 0-1r/s. Wire diameter of twisting:1.67-5.2mm(Aluminum-clad steel wire ,Zinc-coated wire), 1.78-9.27mm( Aluminum-alloy wire). 3.Length of wire tension section: 200-800mm. 4.The spare parts put in or out is opening ,convenient and efficient. 5.On the automatic control ,it touches panel human computer interface , easy operation ,programmable controller infinitely adjustable-speed control frequency conversion motor ,reliable performance ,and low reject rate.
3. Automatic glue sand blasting machine
Automatic glue sand blasting machine
1.It used to be processing technology of glue and sand blasting for preformed armor rods inlayer. 2.One pass for glue sand blasting, the speed can be adjusted about 1m/s.
3.As products request, the function of spraying glue can be continuity and discontinuity.
4.On the automatic control ,it touches panel human computer interface , easy operation ,programmable controller infinitely adjustable-speed control frequency conversion motor ,reliable performance ,and low reject rate.
4. Hydraulic bending machine
Hydraulic bending machine 1.The machine processes bending for preformed armor rods and strain clamp. 2.Speed bending:0-200sets/h (e.g. GDE-35). Wire diameter of bended shaping: 1.67-5.2mm(Aluminum-clad steel wire ,Zinc-coated wire),1.78-9.27mm(Aluminum-alloy wire). 3.As products standards ,it is adjust for bend angle and curvature of preformed armor rods.
