Fiber glass rod is used for production of silicon rubber insulator of electrical overhead lines. It is an important part of composite insulator and core material of composite insulator.

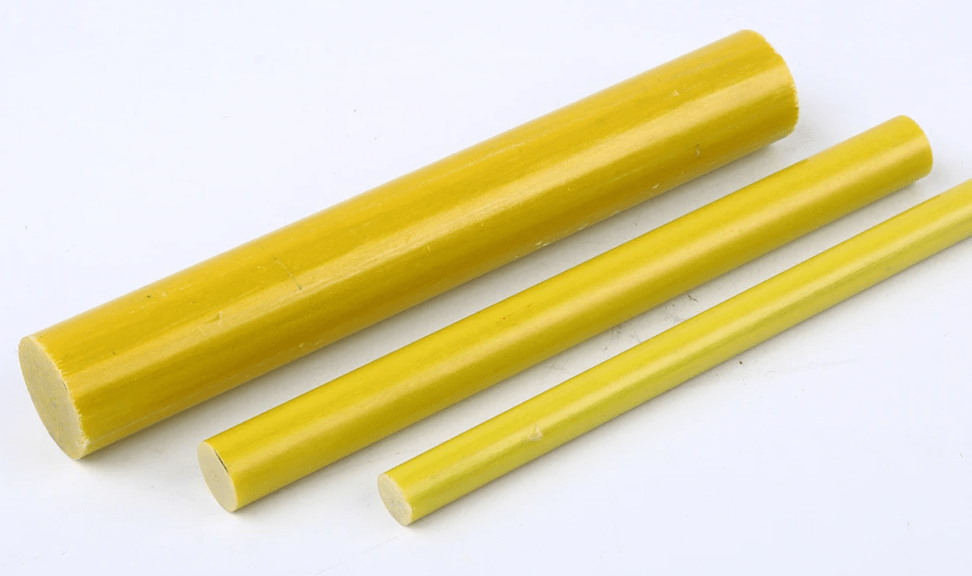

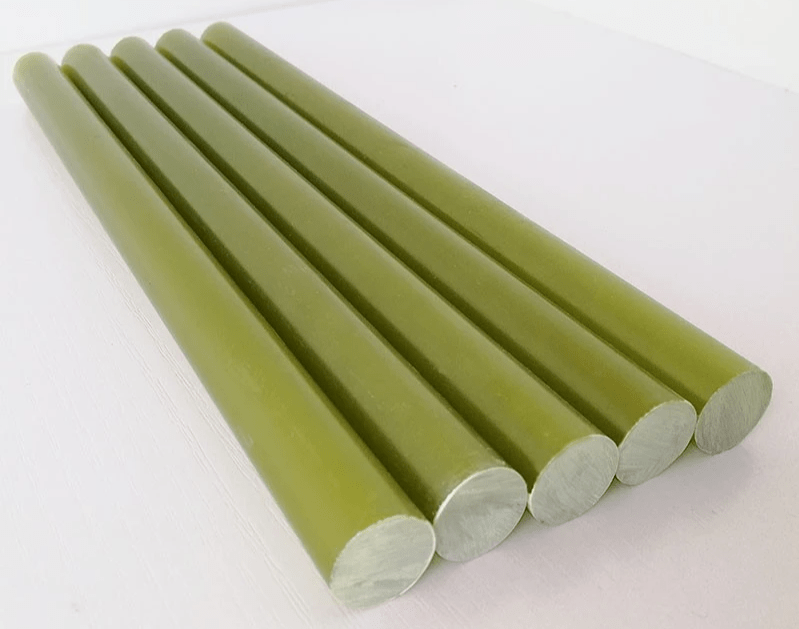

Fiberglass Rod Of Composite Insulators (Frp/Ecr Core)

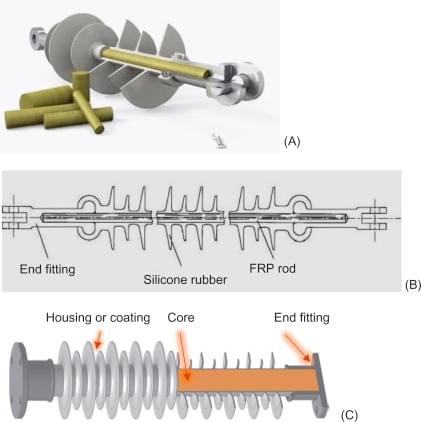

A silicon rubber insulator is also recognized as a composite insulator or polymeric insulator. One of its significant parts, fiberglass rod, as its name, is made of fiberglass material and used as supporting core of silicon rubber insulator. The fiberglass rod consists of dozens of fiberglass threads which makes it enable to bear high tension load in the vertical direction. This is also why the fiberglass rod is selected as supporting the core of composite insulators, especially on tension-type insulators and suspension insulators on electrical overhead lines.
The rod of polymeric insulator has very good performance on the mechanical tensile property, while its cantilever load performance is not so optimizing as the tensile property. Even though in certain projects we use polymer insulator post type in power substation, its bending load and deflection have some problems compared with traditional ceramic post insulators.

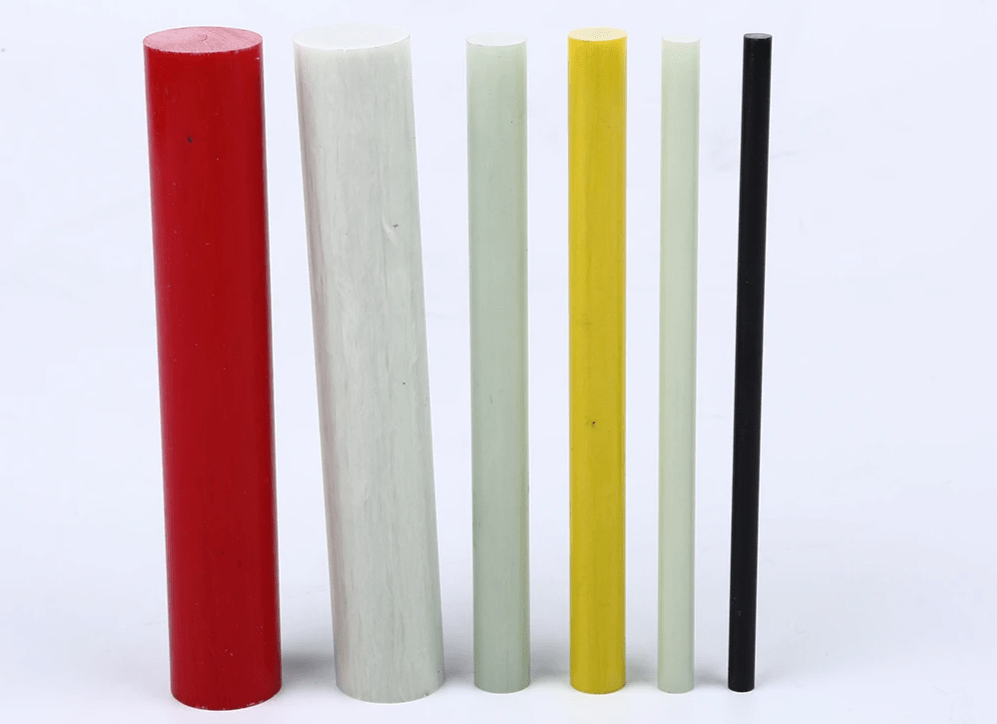

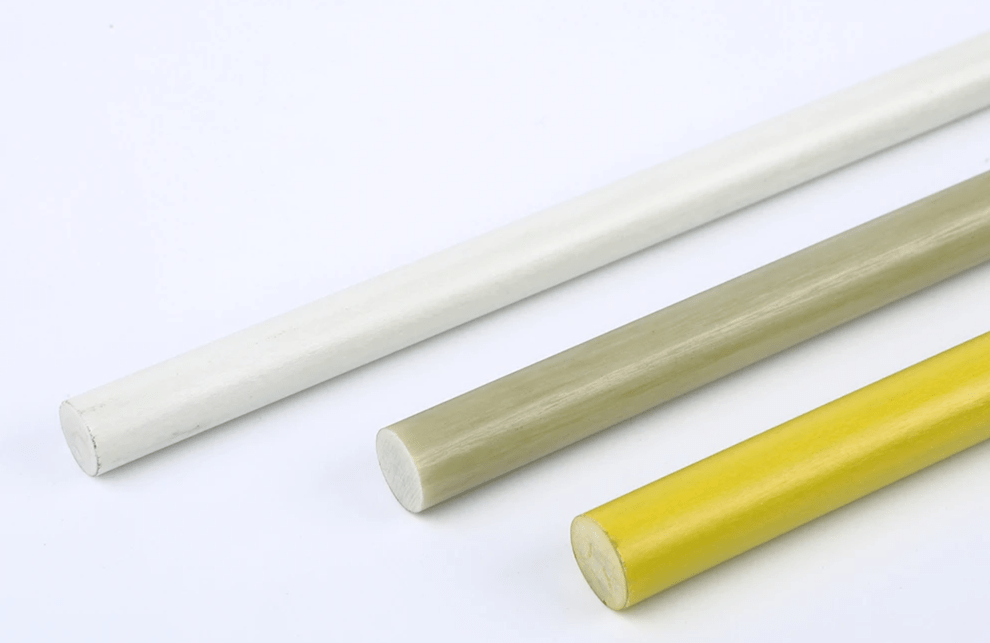

The fiberglass rod can be made into different lengths and diameter to fit different demands of insulators.
For a common silicon rubber insulator of 11,33kV, the diameter of the rod of the insulator can be 16mm, 18mm or more. While for the power substation and transmission line, the diameter of the fiberglass rod shall be bigger to enable a bigger mechanical breaking load.
Long rod insulators - Composite technology up to 800 kV
Type 3FL composite long rod insulators – combine the highest levels of electrical insulation and mechanical tensile strength in a compact, lightweight one-piece housing design with two different sealing options depending on the customer requirements. All 3FL long rod insulators are designed and tested in compliance with the latest versions of IEC 61109, ANSI 29.11, ANSI 29.12 and CSA C411.4-16.
