1. Preformed Conductor Suspension Clamp for ACSR Cable Introduction

The preformed suspension clamp is used to fix the wire on the insulator string of the linear tower or to suspend the lightning protection line on the linear tower. It can replace the ship type suspension clamps such as XGU and XGF which are widely used on the line.

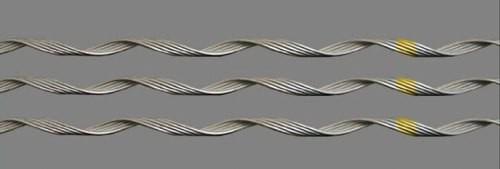

The preformed suspension clamp is made of rubber with a hyperbolic waist drum-shaped damping pad, and the anti-vibration pad is wound with aluminum alloy preformed wire. In addition to the preformed wire, a high-strength aluminum alloy casing is installed, and the casing is externally added. Aluminum alloy U-shaped card.

The preformed suspension clamp uses a hyperbolic waist drum-shaped vibration damping pad to wrap the wire around the suspension, and has the characteristics of large grip force, small electric storm, light weight and small magnetic loss. It is especially suitable for 220KV and above lines, as well as heavy ice areas and large span lines.

Product classification:
Preformed conductor suspension clamp

Preformed ground conductor suspension clamp

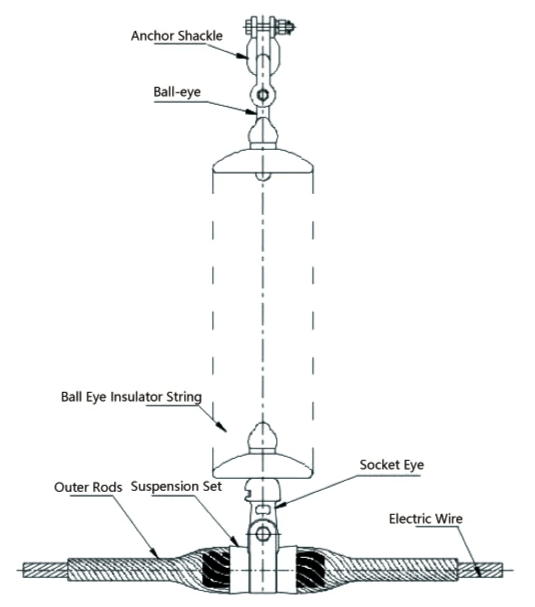

Schematic diagram of pre-twisted suspension clamp product assembly:

Preformed Conductor Suspension Clamp for ACSR Cable Introduction

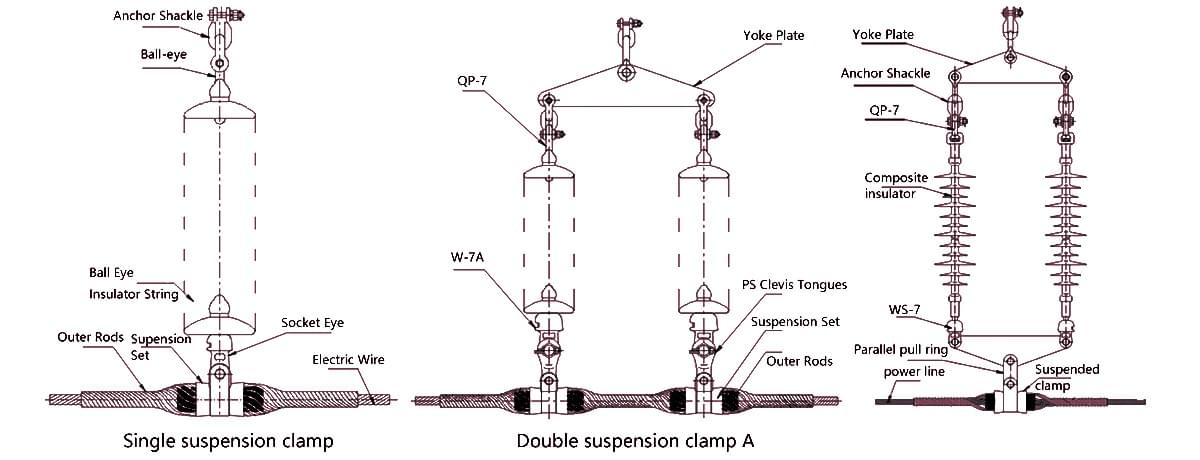

Schematic diagram of pre-twisted suspension clamp product assembly

Features:

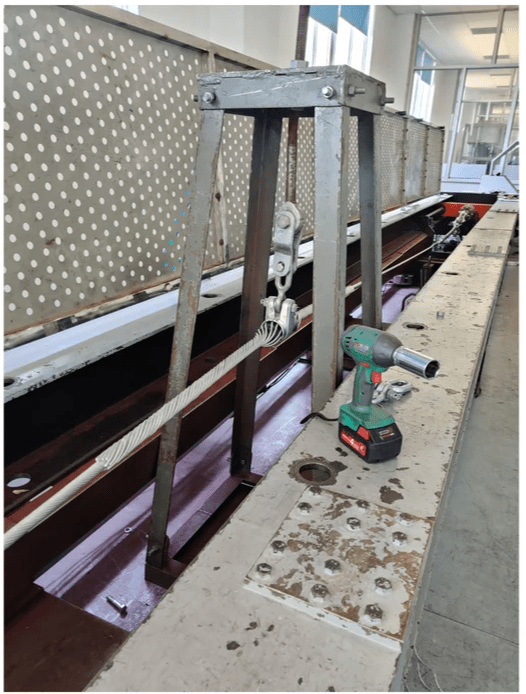

1. The stress of the suspension point is dispersed throughout the length of the pre-twisted wire, which effectively reduces the dynamic stress caused by the static stress and the breeze vibration of the wire, and avoids damage to the wire.

2. The stress concentration of the suspension point greatly improves the fatigue resistance of the wire and prolongs the service life of the wire.

3. Pre-twisted wire can provide reliable grip and withstand high unbalanced loads to avoid wire slippage.

4. special structure, can reduce electromagnetic loss and eliminate corona discharge, compared with the traditional suspension clamp has obvious energy-saving characteristics.

5. The rigidity of the wire hanging point is enhanced, and the radius of curvature is increased. The single-point point clamp can reach a steering angle of 30°, and the double-point line clamp can reach a steering angle of 60°.

Ordering Detail:
1. Please specify the wire type specification when selecting.

2. When the steering angle is between 30° and 60°, or in a large span project, the double fulcrum suspension clamp is directly connected to the insulator string.

3. Workers who have to be trained can install this product.

2. DX Preformed Suspension Fulcrum Clamp for Steel Conductor

Description:

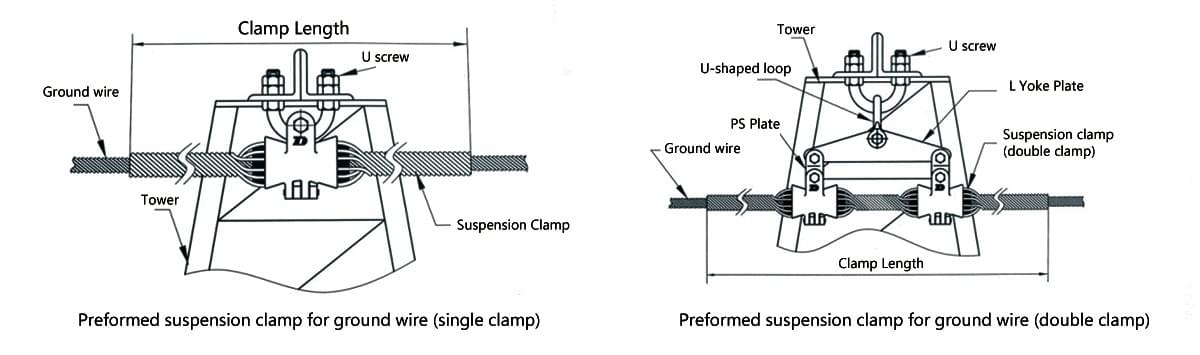

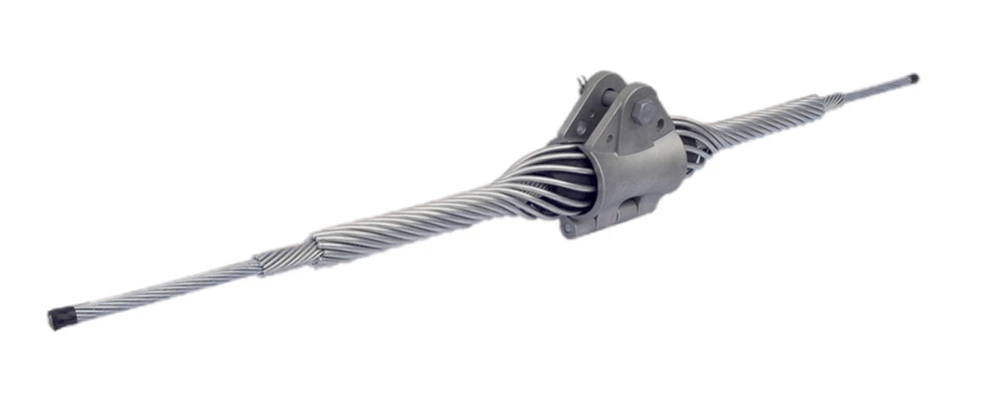

Preformed armor grip suspension clamp has the similar function as normal suspension clamp. It is used as the suspension of conductor and grounding wire, but preformed suspension clamps can not only protect the conductors but also reduce corona discharge greatly because of its smooth appearance. So It is specially suitable for high voltage over 220KV lines. Preformed armor grip suspension clamp is designed to reduce the static and dynamic stresses at the support point and is superior to armor + clamp combinations for protecting conductors from bending, compression stress and abrasion. In addition, the armor grip suspension double assembly is suitable for long transmission line over river and big line angle between 30 and 60.

According to function and applicable area, it can be divided into:
Preformed conductor suspension clamp

Preformed grounding wire armor grip suspension clamp

Preformed armor grip suspension single assembly

Preformed armor grip suspension double assembly

Preformed suspension clamps are composed by preformed wire, rubber pad, metal sheath, fixed blade, bolt nut and washers. Normally the preformed armor grip suspension clamps will be assembled with socket clevis, link plate and other clevis.

DX Preformed Suspension Fulcrum Clamp supplier for Steel Conductor

Notes:

1. DT/L763-2001 standard model C-tension clamp, L-bolt preformed; "-" is the applicable conductor type.

2. The raw material of the preformed wire tensile clamp for steel core aluminum stranded wire is galvanized steel wire.

3. DX51xx is a single-point product, and DX56xx is a double-point product.

4. Only some products are listed in the table. Please contact us for other specifications.

3. DX Preformed Ground Suspension Fulcrum Clamp for Galvanized Iron Wire Stranded

Description:

Preformed armor grip suspension clamp has the similar function as normal suspension clamp. It is used as the suspension of conductor and grounding wire, but preformed suspension clamps can not only protect the conductors but also reduce corona discharge greatly because of its smooth appearance. So It is specially suitable for high voltage over 220KV lines. Preformed armor grip suspension clamp is designed to reduce the static and dynamic stresses at the support point and is superior to armor clamp combinations for protecting conductors from bending, compression stress and abrasion. In addition the armor grip suspension double assembly is suitable for long transmission line over river and big line angle between 30 and 60.

Material: Aluminum clad steel wire or galvanized steel wire.

According to function and applicable area, it can be divided into:

Preformed conductor suspension clamp

Preformed grounding wire armor grip suspension clamp

Preformed armor grip suspension single assembly

Preformed armor grip suspension double assembly

Preformed suspension clamps are composed by preformed wire, rubber pad, metal sheath, fixed blade, bolt nut and washers. Normally the preformed armor grip suspension clamps will be assembled with socket clevis, link plate and other clevis.

ground wire preformed suspension clamp, single clamp supplier,double clamp manufacturer

Notes:

1. DT/L763-2001 standard model C-tension clamp, L-bolt preformed; "-" is the applicable conductor type.

2. The raw material of the preformed wire tensile clamp for steel core aluminum stranded wire is galvanized steel wire.

3. DX51xx is a single-point product, and DX56xx is a double-point product.

4. Only some products are listed in the table. Please contact us for other specifications.

4. DX Preformed Ground Suspension Fulcrum Clamp for aluminum clad steel conductor

Notes:

1. DT/L763-2001 standard model C-tension clamp, L-bolt preformed; "-" is the applicable conductor type.

2. The raw material of the preformed wire tensile clamp for steel core aluminum stranded wire is galvanized steel wire.

3. DX51xx is a single-point product, and DX56xx is a double-point product.

4. Only some products are listed in the table. Please contact us for other specifications.

aluminum clad steel conductor Preformed Ground Suspension Fulcrum Clamp supplier

5. CL Preformed Suspension Fulcrum Clamp for Aluminum Stranded Conductors

Description:

Preformed armor grip suspension clamp has the similar function as normal suspension clamp. It is used as the suspension of conductor and grounding wire, but preformed suspension clamps can not only protect the conductors but also reduce corona discharge greatly because of its smooth appearance. So It is specially suitable for high voltage over 220KV lines. Preformed armor grip suspension clamp is designed to reduce the static and dynamic stresses at the support point and is superior to armor + clamp combinations for protecting conductors from bending, compression stress and abrasion. In addition the armor grip suspension double assembly is suitable for long transmission line over river and big line angle between 30 and 60.

According to function and applicable area, it can be divided into:

Preformed conductor suspension clamp

Preformed grounding wire armor grip suspension clamp

Preformed armor grip suspension single assembly

Preformed armor grip suspension double assembly

Preformed suspension clamps are composed by preformed wire, rubber pad, metal sheath, fixed blade, bolt nut and washers. Normally the preformed armor grip suspension clamps will be assembled with socket clevis, link plate and other clevis.

Note: the raw material of pre twisted conductor suspension clamp for single pivot and double pivot of aluminum strand is aluminum alloy wire; only some products are listed in the table, please contact us for other specifications
